FK 102 Co(II) PF6 salt

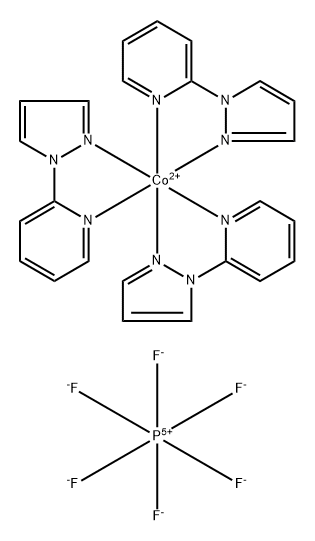

Synonym(s):Greatcell Solar;tris(2-(1H-pyrazol-1-yl)pyridine)cobalt(II) di[hexafluorophosphate]

CAS NO.：1392221-69-0
Empirical Formula: C24H21CoF6N9P+
Molecular Weight: 639.39
MDL number: MFCD29037024
Update Date: 2025-01-27 09:38:02

What is FK 102 Co(II) PF6 salt?

Description

Tris(2-(1H-pyrazol-1-yl)pyridine)cobalt(II) di[hexafluorophosphate], commonly known as FK102 Co(II)PF6?Salt, is used as redox electrolyte in DSSC or hole transport and dopant materials in perovskite solar cells.

The Uses of FK 102 Co(II) PF6 salt

Use this cobalt complexes to increase photovoltages of liquid electrolyte cells substantially or to achieve ultrahigh performance with solid state photovoltaic devices.
FK102 cobalt complexes offer guaranteed performance, high reproducibility, consistent results, and are of highest purity. In comparison to triiodide-based redox electrolytes, cobalt complexes in general increase photovoltages and particularly at lower light levels (e.g. for indoor applications), significantly increase device power output.
Recommended use:
In liquid-based electrolytes: typically 0.15-0.2M of Co(II) and ca. 0.05M Co(II)
In solid-state photovoltaic cells: up to 10 weight % added to the hole transport material system.

Properties of FK 102 Co(II) PF6 salt

Melting point:	362°C
form	powder
color	Orange
solubility	Acetonitrile

Safety information for FK 102 Co(II) PF6 salt

Signal word	Warning
Pictogram(s)	Exclamation Mark Irritant GHS07
GHS Hazard Statements	H315:Skin corrosion/irritation H317:Sensitisation, Skin H319:Serious eye damage/eye irritation H335:Specific target organ toxicity, single exposure;Respiratory tract irritation
Precautionary Statement Codes	P280:Wear protective gloves/protective clothing/eye protection/face protection. P302+P352:IF ON SKIN: wash with plenty of soap and water. P305+P351+P338:IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continuerinsing.

Computed Descriptors for FK 102 Co(II) PF6 salt
