(2S)-4-Oxo-2-(3-thiazolidinylcarbonyl)-1-pyrrolidinecarboxylic acid tert-butyl ester

The Uses of (2S)-4-Oxo-2-(3-thiazolidinylcarbonyl)-1-pyrrolidinecarboxylic acid tert-butyl ester

(2S)-4-Oxo-2-(3-thiazolidinylcarbonyl)-1-pyrrolidinecarboxylic Acid 1,1-Dimethylethyl Ester is an intermediate used to prepare dipeptidyl peptidase IV (DPP-IV) inhibitors.

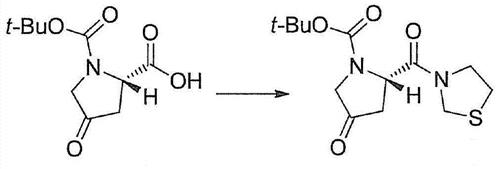

Synthesis

To (2S)-1-tertbutyloxycarbonyl-4-oxa-tetramethyleneimine-2-carboxylic acid (60.0kg), thiazolidine (30.3kg) and the solution of N-diisopropylethylamine (118kg) in ethyl acetate (595kg), adds the solution of 28w% propyl phosphonous acid anhydride (cyclic trimer) in ethyl acetate (446kg) at 2 ℃-7 ℃, and reaction mixture is stirred 2 hours at 2 ℃-4 ℃.To this reaction mixture, add 15w% aqueous citric acid solution (600kg) for distributing, and ethyl acetate for water layer (271kg) is extracted.

The ethyl acetate layer obtaining is mixed, and use successively 10w% ammonium dibasic phosphate aqueous solution (600kg) and water (300kg) washing.Ethyl acetate layer is concentrated into residual quantity 300L, normal heptane (739kg), 23 ℃ of-25 ℃ of interpolations, and is stirred this mixture 1 hour at 23 ℃-25 ℃, and stir 2 hours at 1 ℃-5 ℃. The crystal of precipitation is collected by filtration, is used normal heptane (164kg) washing drying under reduced pressure to produce (2S)-4-Oxo-2-(3-thiazolidinylcarbonyl)-1-pyrrolidinecarboxylic acid tert-butyl ester (67.8kg, yield 86%).

Appearence

White to yellow powder
